The Square Top tile is a classic low profile tile which proves very popular in new build and refurbishment projects alike. The single lap, square profile of the square top tile is extremely functional. The simple design gives the tiles inherent strength.

Square Top Tile

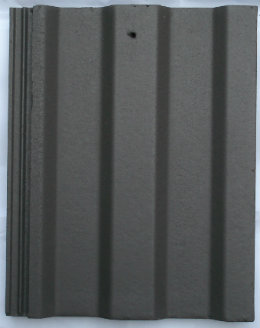

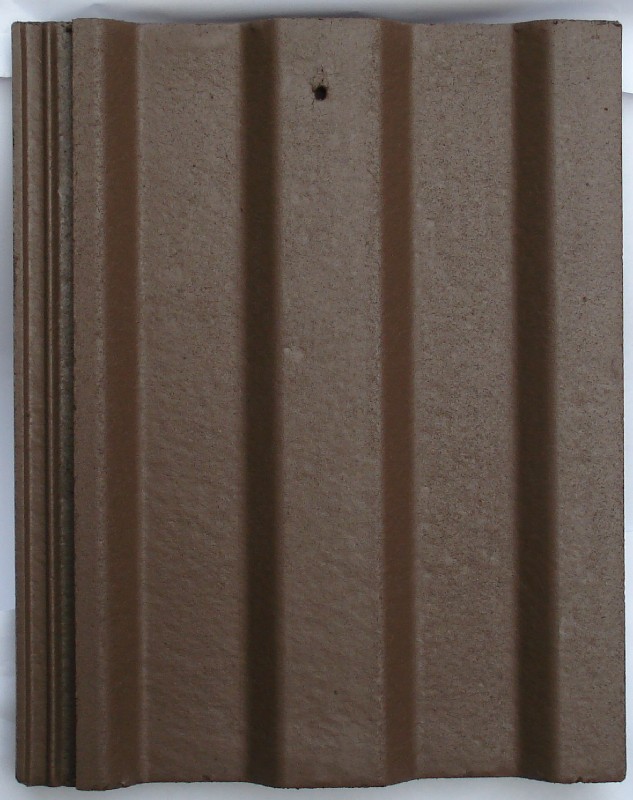

Available in Anthracite, Brown and Antique Red

  • Size of Tile Overall 420 x 330mm
  • Minimum Pitch 22.5 degrees
  • Maximium Pitch 90 degrees (subject to fixing specification)
  • Headlap (minimum) 75mm above 25 degrees / 100mm at 25 degrees or below
  • Gauge (maximum) 345mm
  • Cover width of one tile (nominal) 297mm
  • Covering Capacity (Headlap 75mm) 9.8 tiles / sq metre
  • Covering Capacity (Headlap 100mm) 10.4 tiles / sq metre
  • Hanging Length (nominal) 400mm
  • Weight per 1000 (approx) 5.0 tonnes
  • Recommended Batten size (see BS5534). Rafter centres up to 600mm 50 x 25mm
  • Recommended Nail size 55 x 3.35mm

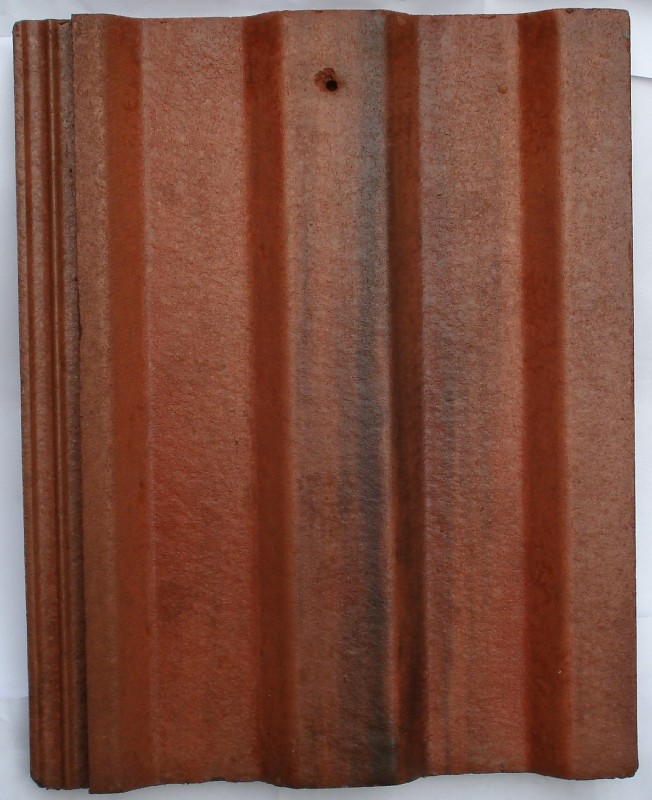

Antique Red
