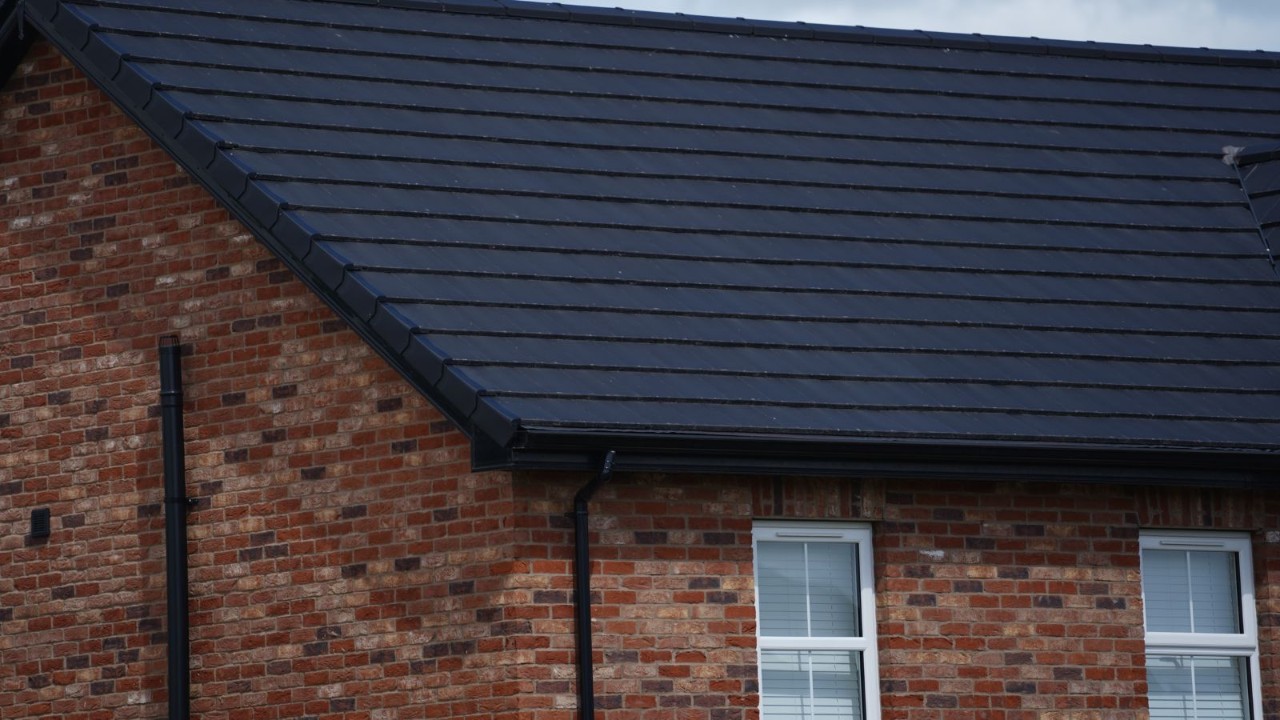

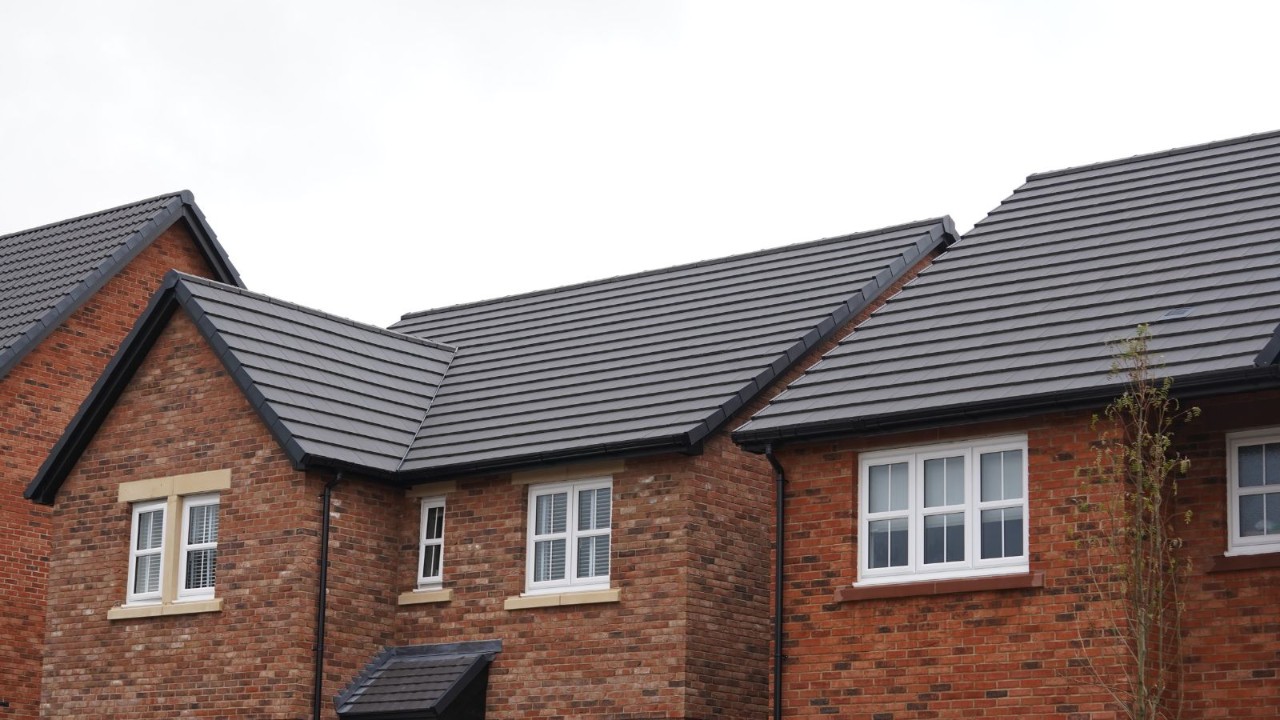

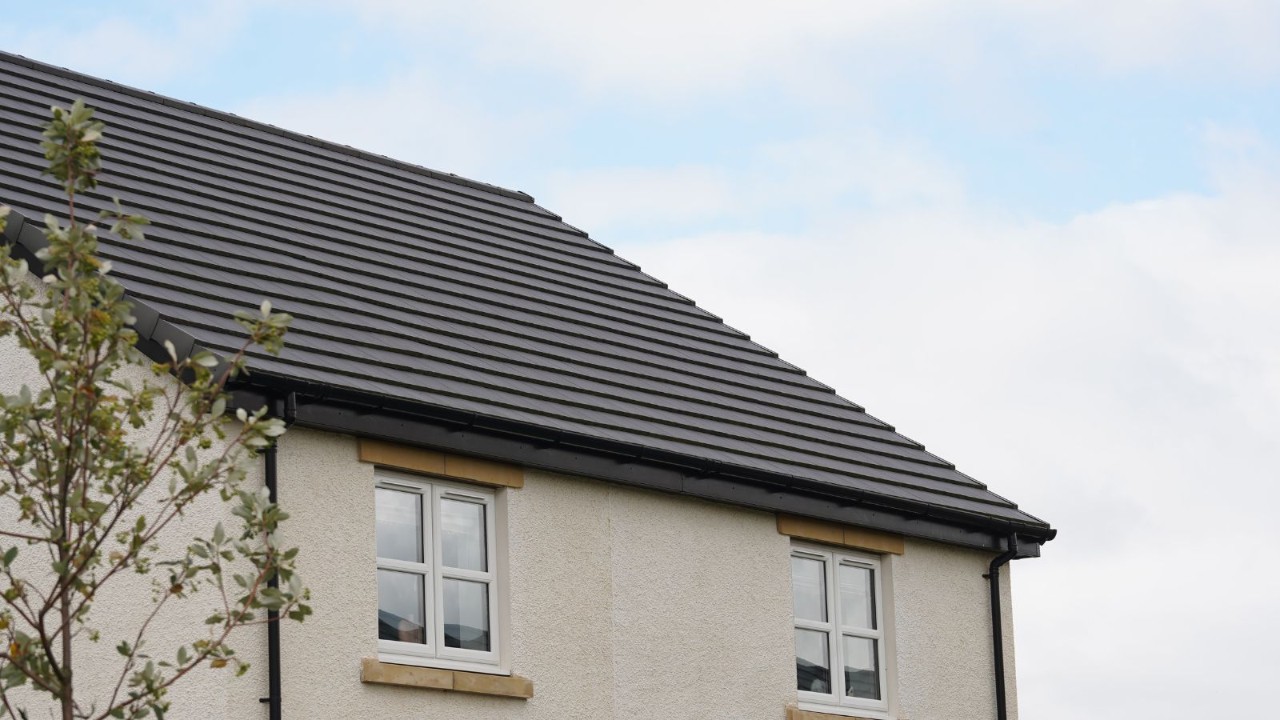

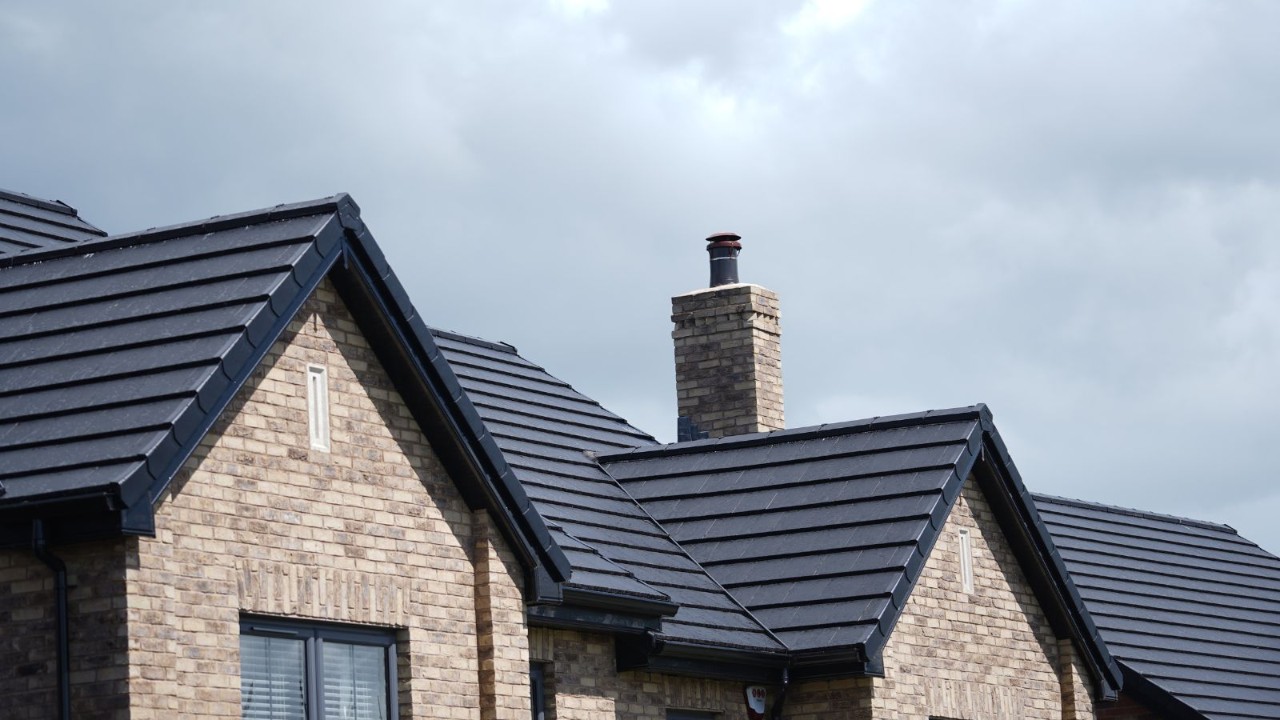

Our traditional concrete interlocking flat-style tile is fixed on the roof in a broken bond pattern. This tile gives a clean and modern look to any home.

Flat Tile

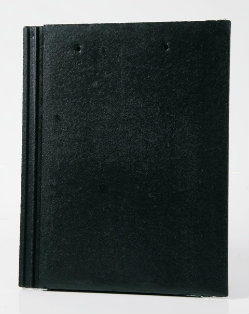

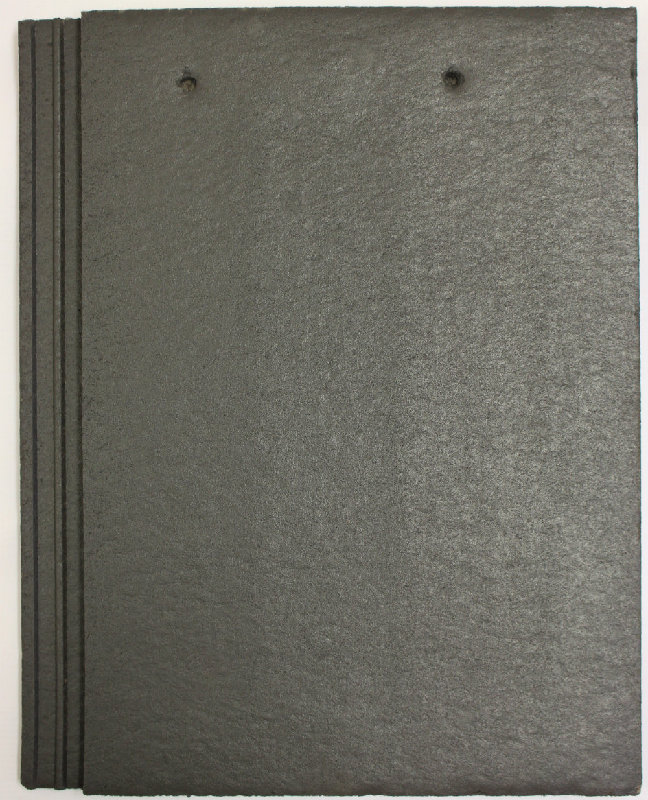

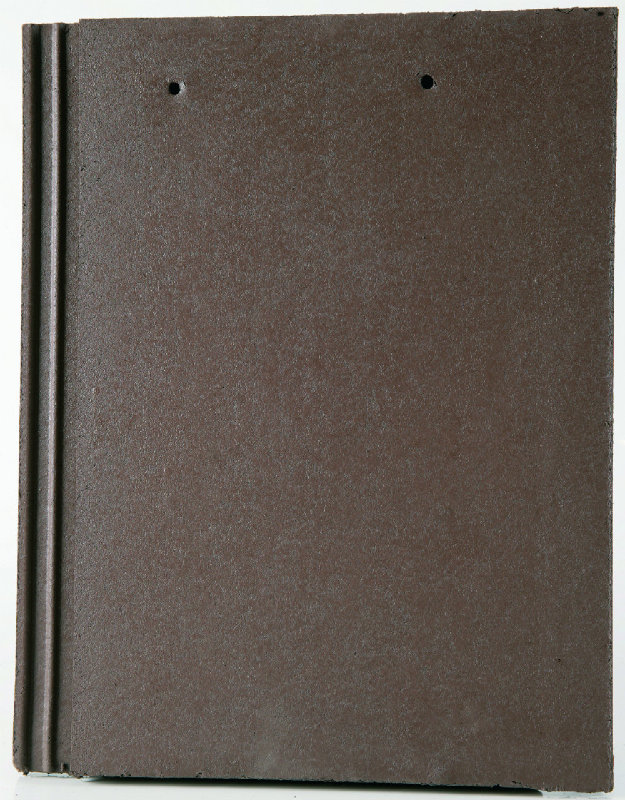

Available in Black, Anthracite, Brown, Red and Antique Red

  • Size of Tile Overall 420 x 330mm
  • Minimum Pitch 17.5 degrees (for rafter length over 8 metres or sites with a high level of exposure please consult our technical department)
  • Maximium Pitch 90 Degrees (subject to fixing specifications)
  • Headlap (minimum)
    • 75mm above 25 degrees
    • 100mm at 25 degrees or below
  • Gauge (maximum) 345mm
  • Cover width of one tile (nominal) 297mm
  • Covering Capacity (Headlap 75mm) 9.8 tiles / sq metre
  • Covering Capacity (Headlap 100mm) 10.5 tiles / sq metre
  • Hanging Length (nominal) 400mm
  • Weight per 1000 (approx) 5.45 tonnes
  • Recommended Batten size (see BS5534). Rafter centres up to 600mm 50 x 25mm
  • Recommended Nail size 50mm x 3.35mm

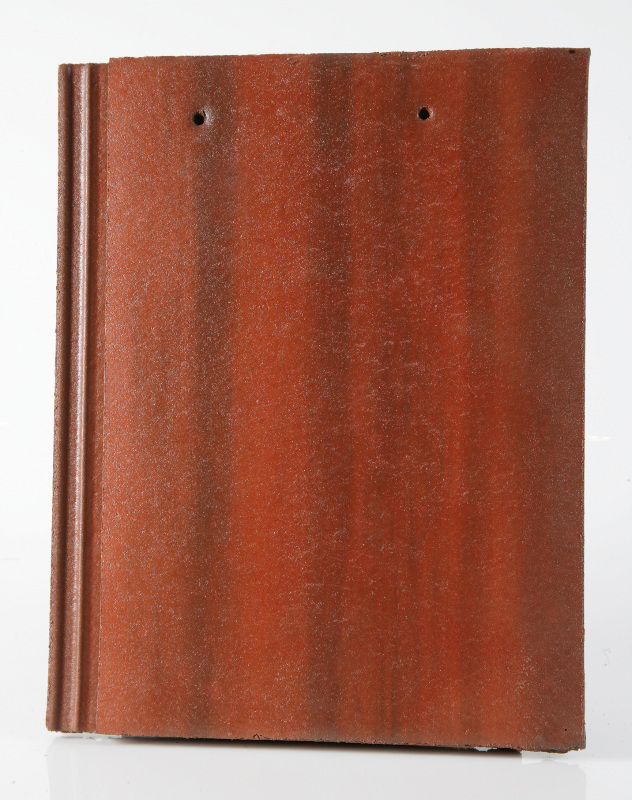

Antique Red
